Application:

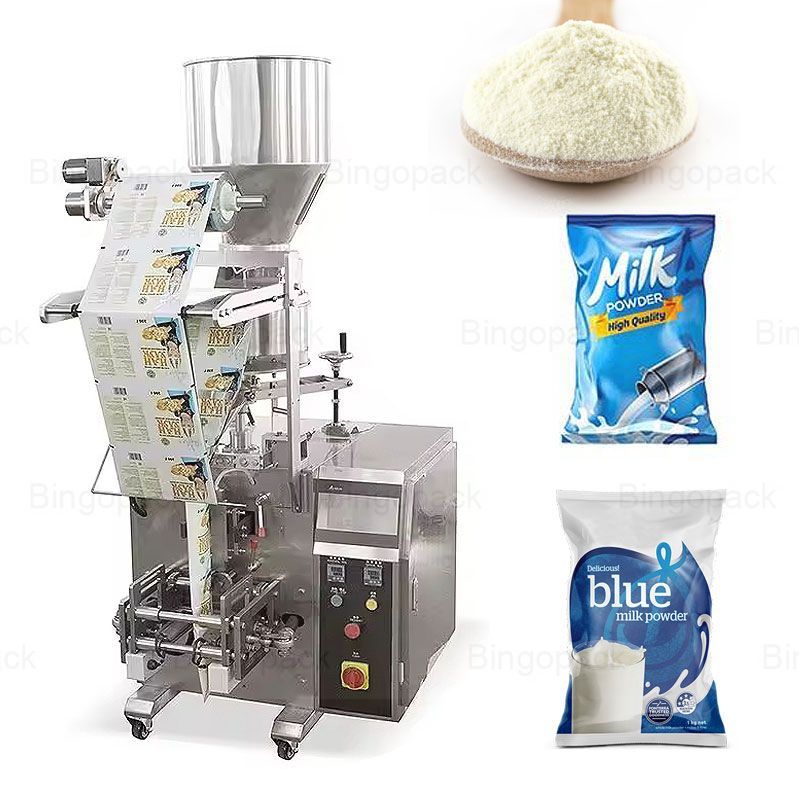

Widely applicable, this machine can be customized to accommodate specially shaped parts according to customer requirements. It features microcomputer control and fully automates the packaging process for enhanced efficiency and precision.
Suitable for coffee powder, tea powder, flour, milk powder, bean powder, and more. This machine is designed to pack products into personalized bags with precision and efficiency, meeting diverse packaging needs.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Sachet/Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Tailored Vibration Plate for Precision: Customized vibration plates with linear arrangement ensure stable orientation of screws, bolts, or dowels, allowing highly accurate counting per bag.
2. High-Precision Counting Control: Equipped with a sophisticated counting system, each product is accurately dispensed into the bag, minimizing errors and waste.
3. Icon Packaging Compatibility: Supports icon-printed film; advanced step control paired with a color mark tracker ensures perfect icon alignment and bag aesthetics.
4. SCM Intelligent Control System: Integrated SCM system enables automatic fault stop, alarm, and self-diagnosis functions—ensuring safe and efficient operation.
5. Real-Time Production Statistics Display: Automatically displays packaging quantity, making it easy to monitor production output and compile data.
6. Easy to Operate & Maintain: Simple user interface and modular design allow for quick adjustments, easy maintenance, and fast changeovers.
7. Compatible with Multi-Disk Use: For mixed packing of different screw sizes or types, multiple vibration plates can be integrated and customized accordingly.
8. Consistent Bag Quality: Delivers smooth, neatly sealed bags for a professional product finish, suitable for retail or bulk supply.
Application:
| Model | BP-320 | BP-380 |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70 bags/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
