Packing & Filling Machine Manufacturer Since 2001
Application:

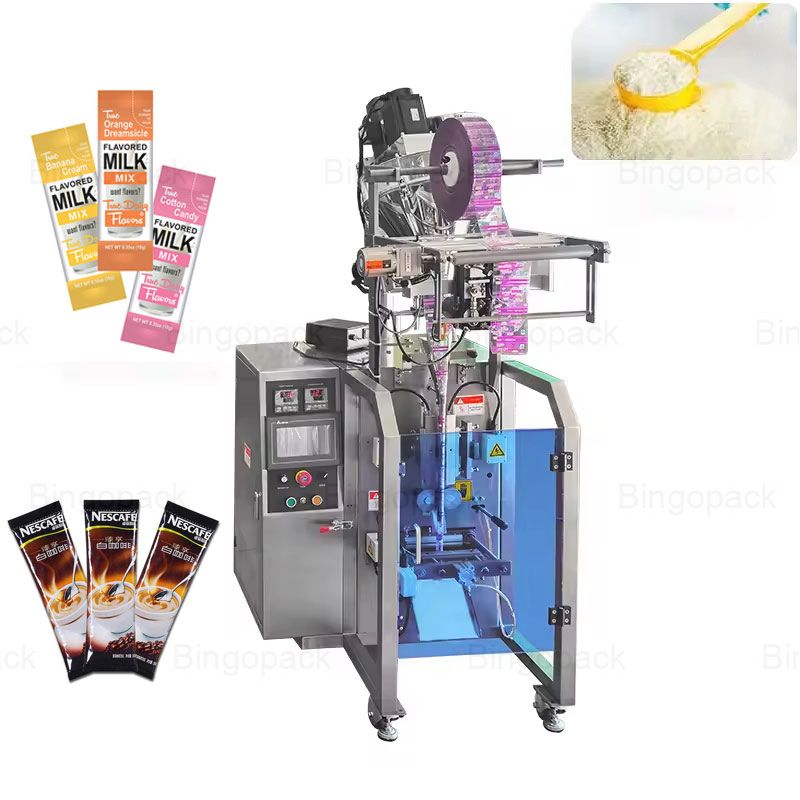

Automatic 1g 5g 10g 20g Powder Stick Vertical Packaging Machine is suitable for packing fine powder material. Such as milk powder, coffee powder, spice powder, flour, fruit powder, seasoning, chemical medical powder, etc.
Kindly Reminder:
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Benefits & Features
Parameter
Benefits & Features
Videos:
Bag Shape Options:
1. Sachet/Stick bag
2. Three side sealing sachet
3. Four side sealing sachet
4. Small pillow bag
5. Linked bag
6. Bag with hanging hole
7. Bag with easy tear notch
Features:
1. Flexible screw metering for various product weights.
2. Easy gram adjustment via touch screen—no tools needed.
3. Stable performance with simple operation.
4. Quick disassembly for easy cleaning and maintenance.
5. Articulated bag former ensures high-speed, accurate sealing and cutting.
6. Organized circuit layout for easy inspection and maintenance.
7. External placement design makes operation simple; adjustable temperature based on film type.

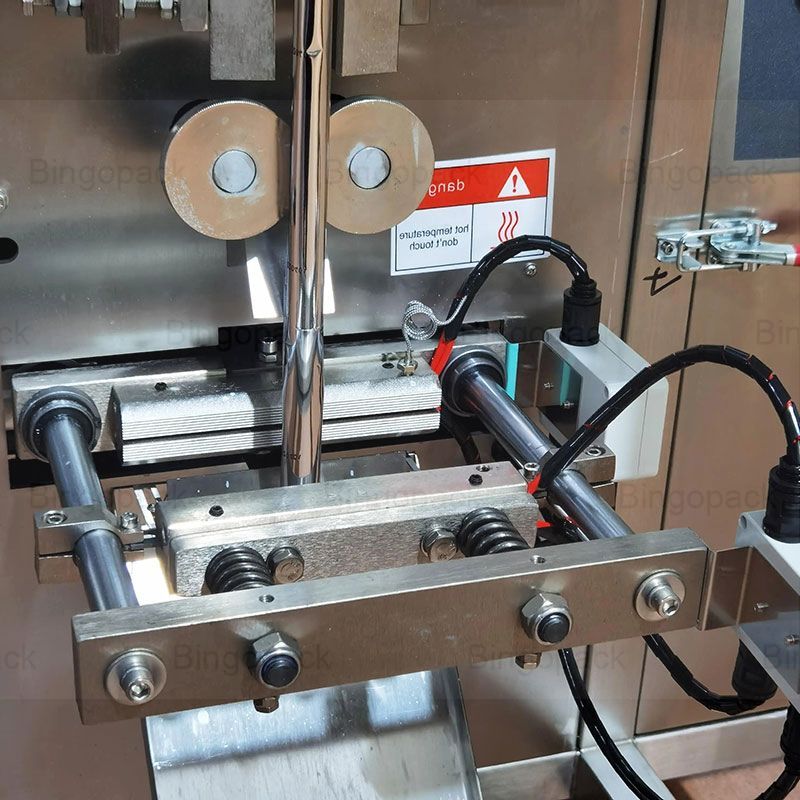

8. Heated metal cutter ensures tight sealing and prevents leakage.
Application:
| Model | BP-320 | BP-380 |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70 bags/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
